Large Sized Type
시리즈명을 누르면 데이터시트(PDF)를 볼 수 있습니다.
PRODUCT LIST LARGE SIZED ALUMINUM ELECTROLYTIC CAPACITORS
| Series | Applications | Load life Time (Hrs) | Miniature | Standard type | Low impedance | Long life | Solvent-proof | Terminal type | Rated voltage range (VDC) | Capacitance range (㎌) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PCBTerminal Type | General Purpose |  TDC | More Downsized | 105℃ 2,000Hrs | ● | Pin | 160~500 | 68~1,200 | ||||
| High Reliability |  TLS | Downsized, Long Life, Wide Temp., High Ripp | 105℃ 3,000Hrs | ● | Pin | 160~550 | 56~3,300 | |||||

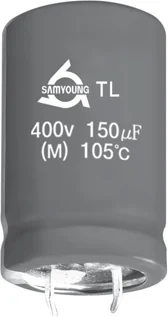

 TLG | Downsized. Long Life, High Ripple, Low Temp | 105℃ 3,000Hrs | ● | Pin | 160~500 | 47~2,700 | ||||||

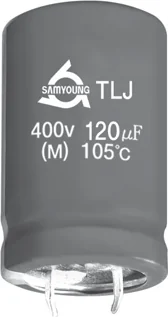

 TLJ | Downsized. Long Life, High Ripple, Low Temp | 105℃ 3,000Hrs | ● | Pin | 400~500 | 56~680 | ||||||

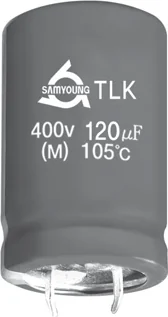

 TLK | Downsized. Long Life, High Ripple, Low Temp | 105℃ 3,000Hrs | ● | Pin | 400-500 | 56~680 | ||||||
 TLR | Downsized. Long Life, High Ripple, Low Temp | 105℃ 3,000Hrs | ● | Pin | 400-500 | 68~680 | ||||||
 TLH | Downsized. Long Life. Wide Temp.. High Rioo | 105℃ 5,000Hrs | ● | Pin | 400~500 | 68~680 | ||||||

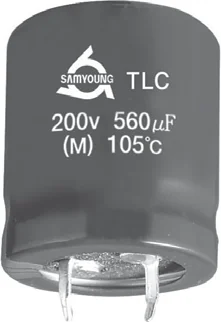

 TLC(LXG) | Miniature, Long Life | 105℃ 5,000Hrs | ● | Pin | 10~500 | 47~47,000 | ||||||
 TLF | Miniature, Long Life | 105℃ 5,000Hrs | ● | Pin | 10~500 | 47~47,000 | ||||||
 TLB | Miniature, Long Life | 105℃ 7,000Hrs | ● | ● | Pin | 160~500 | 47~2,200 | |||||
 TLL | Miniature, Long Life | 105℃ 10,000Hrs | ● | Pin | 200~500 | 100~1,800 | ||||||
 UDA | WideTemp, | 125℃ 1,000Hrs | ● | Pin | 16~250 | 100~10,000 | ||||||
 UDB | WideTemp,Long Life, High Voltage | 125℃ 3,000Hrs | ● | Pin | 450~500 | 100~560 | ||||||
| Special Application |  RVA | No Spark With DC Overvoltage | 85℃ 2,000Hrs | Pin | 200~450 | 47~2,200 | ||||||
 TVA | No Spark With DC Overvoltage | 105℃ 2,000Hrs | Pin | 200~450 | 56~1,800 | |||||||
 TZF | Flame Retardant electrolyte type | 105℃ 2,000Hrs | ● | Pin | 400~450 | |||||||

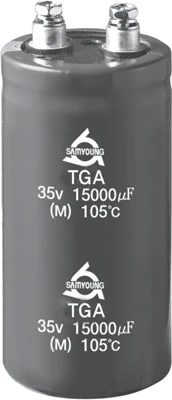

| Screw-BoltTerminal Type | General Purpose |  TGA(KMH) | General, Wide Temp. | 105℃ 2,000Hrs | Screw | 10~450 | 180~680,000 | |||||

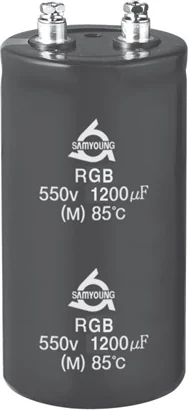

| For Inverter |  RGB | High Ripple. High Voltage | 85℃ 2,000Hrs | Screw | 16~650 | 100~680,000 | ||||||
 RFC(RWF) | High Ripple. Long Life | 85℃ 5,000Hrs | ● | Screw | 350~550 | 1,500~22,000 | ||||||

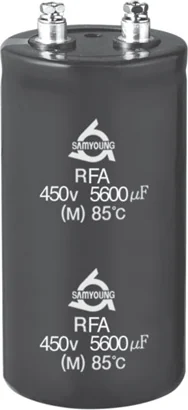

 RFA | High Ripple. Long Life | 85℃ 8,000~20,000Hrs | ● | Screw | 350~550 | 1,000~22,000 | ||||||

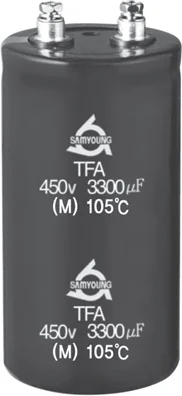

 TFA | High Ripple. Long Life | 105℃ 2,000~5,000Hrs | ● | Screw | 350~550 | 1,000~22,000 | ||||||

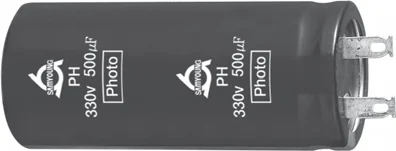

| Special Application |  PH | For Photo Flash | 5~355℃ 5,000Times | Pin | 330 | 165~2,000 | ||||||

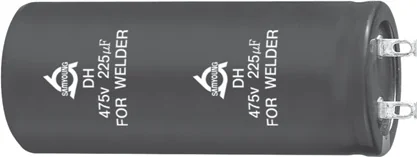

 DH | For Welding Machine | 40℃ 1,000,000Times | Screw | 315~475 | 100~330 | |||||||
