PRODUCT

제품소개

전 공정을 일괄 제어하는 IN-LINE 설비와 최첨단 고속설비 단계별 철저한 검사 및 관리시스템 구축, 축적된 Know-How

제품정보

Aluminum Solid Type

SERIES GROUP CHART PRODUCT LIST

시리즈명을 누르면 데이터시트(PDF)를 볼 수 있습니다.

PRODUCT LIST ALUMINUM SOLID ELECTROLYTIC CAPACITORS

PRODUCT LIST ALUMINUM SOLID ELECTROLYTIC CAPACITORS
Series			Applications	Load life Time (Hrs)	Miniature	Standard type	Low impedance	Long life	Solvent-proof	Terminal type	Rated voltage range (VDC)	Capacitance range (㎌)
Aluminum Solid	Surface mount	ASV	Vertical type, 105℃, Low ESR	105℃ 2,000~5,000Hrs		●		●	●	SMD	4~25	10~820
		AXV	Vertical type, 105℃, Super Low ESR	105℃ 2,000~5,000Hrs			●	●	●	SMD	4~25	47~2,200
		APV	Vertical type, 125℃, High Temperature	125℃ 2,000Hrs				●	●	SMD	10~25	8.2~82
		AHV	Vertical type, 105℃, High Voltage	105℃ 2,000 ~ 5,000Hrs					●	SMD	16~100	10~470
		AQV	Vertical type, 125℃, High Voltage/Temperature	125℃ 4,000Hrs					●	SMD	50~80	10~68

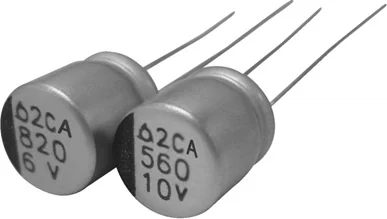

	Radial	ASA	Radial type, 105℃, Low ESR	105℃ 2,000~5,000Hrs		●		●	●	Radial	4~25	10~1,200

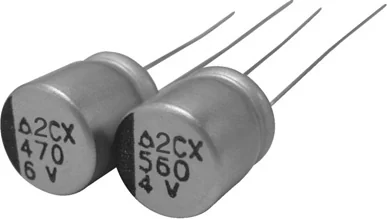

		AXA	Radial type, 105℃, Super Low ESR	105℃ 2,000~5,000Hrs			●	●	●	Radial	4~25	47~1,800
		APA	Vertical type, 125℃, High Temperature	125℃ 2,000Hrs				●	●	Radial	10~25	8.2~82
		AHA	Radial type, 105℃, High Voltage	105℃ 2,000~5,000Hrs					●	Radial	16~100	10~560

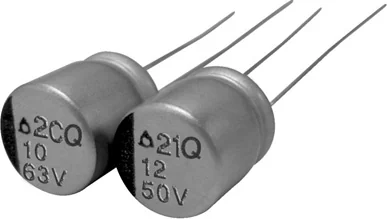

		AQA	Radial type, 125℃, High Voltage/Temperature	125℃ 4,000Hrs					●	Radial	50~80	10~82
