전 공정을 일괄 제어하는 IN-LINE 설비와 최첨단 고속설비 단계별 철저한 검사 및 관리시스템 구축, 축적된 Know-How

제품정보

Miniature Type

시리즈명을 누르면 데이터시트(PDF)를 볼 수 있습니다.

PRODUCT LIST MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

PRODUCT LIST MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
Series			Applications	Load life Time (Hrs)	Miniature	Low impedance	Long life	Solvent-proof	Terminal type	Rated voltage range (VDC)	Capacitance range (㎌)

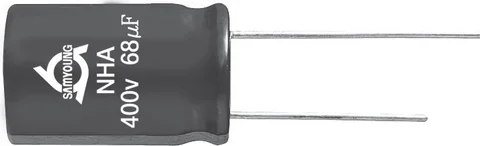

Miniature	General Purpose	NHA	High Capacitance, Downsized	105℃ 1,000~2,000Hrs	●				Radial	6.3-500	3.3~15,000

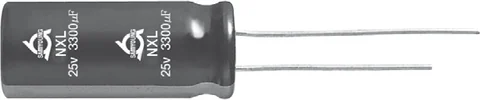

	ESR. Low Imp.	NXL(LXV)	Low Imp., Long Life	105℃ 2,000~5,000Hrs		●	●	●	Radial	6.3~100	3.3~15,000

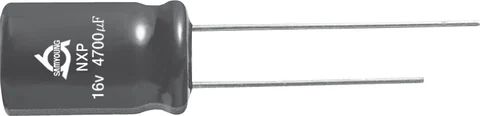

		NXP(LXZ)	Low Imp., Long Life	105℃ 2,000~5,000Hrs		●	●	●	Radial	6.3~50	68~18,000
		NXR	Low Imp., Long Life	105℃ 4,000~7,000Hrs		●	●	●	Radial	6.3~35	330~12,000

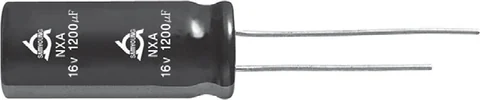

		NXA	Low Imp., Long Life	105℃ 6,000~10,000Hrs		●	●		Radial	6.3~100	39~18,000
		NXB	Low Imp., Long Life	105℃ 2,000~5,000Hrs		●	●		Radial	6.3~120	22~8,200

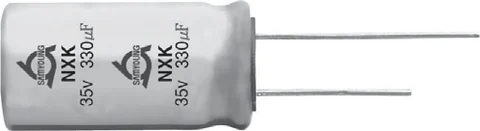

		NXK	Low Imp., Long Life, High Ripple	105℃ 4,000~5,000Hrs		●	●		Radial	10~50	120~2,700

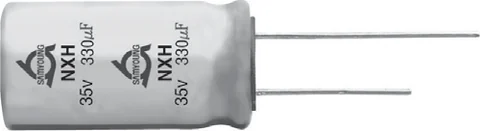

		NXH	Low Imp., Long Life	105℃ 6,000~10,000Hrs		●	●		Radial	6.3~100	47~10,000
		NXQ	Low Imp., Long Life, High Ripple	105℃ 9,000~10,000Hrs		●	●		Radial	6.3~120	33~8,200

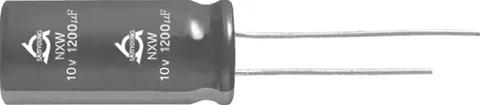

		NXW	Low Imp., Long Life, High Ripple	105℃ 8,000~10,000Hrs		●	●		Radial	6.3~50	120-8,200
		NXE	Ultra Low ESR, Long Life	105℃ 3,000~4,000Hrs		●	●		Radial	6.3~35	270~3,300

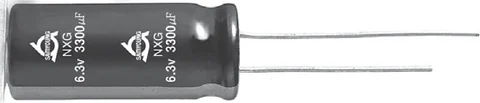

		NXG	Ultra Low ESR, Long Life, High Ripple	105℃ 3,000~4,000Hrs		●	●		Radial	6.3~35	270~3,300
	High Reliability	NZE	High Ripple	105℃ 2,000Hrs			●		Radial	160~500	4.7~1,000
		NFK	Long Life, High Ripple	105℃ 5,000Hrs			●		Radial	160~500	4.7~1,000
		NFS	Long Life, High Ripple	105℃ 5,000Hrs			●		Radial	200~500	6.8~150
		NBA	Long Life, High Ripple, Low Temp.	105℃ 3,000~5,000Hrs			●		Radial	160~500	1.5~1,000
		NBR	Long Life, High Ripple, Low Temp.	105℃ 3,000~5,000Hrs			●		Radial	160~500	1.5~470

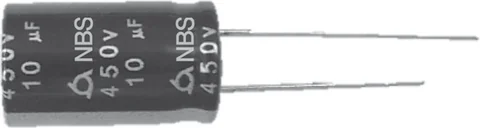

		NBS	Long Life, High Ripple, Low Temp.	105℃ 5,000Hrs			●		Radial	160~500	6.8~470
		NFA	Long Life, High Ripple	105℃ 7,000-10,000Hrs			●		Radial	160~500	2.2~1,000
		NFL	Long Life, High Ripple	105℃ 8,000-12,000Hrs			●		Radial	160~500	47~180
		NFR	Long Life, High Ripple	105℃ 8,000-12,000Hrs			●		Radial	160~500	3.3~470

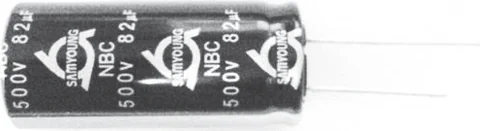

		NBC	Long Life, High Ripple, Low Temp.	105℃ 5,000-12,000Hrs			●		Radial	160~500	1.5~1,000

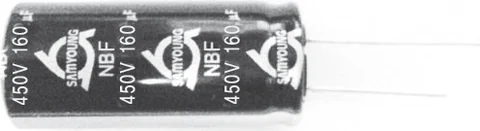

		NBF	Long Life, High Ripple, Low Temp.	105℃ 12,000Hrs			●		Radial	450~500	33~180

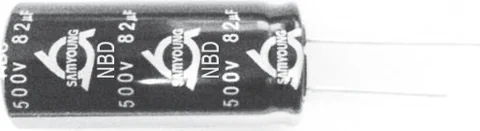

		NBD	Long Life, High Ripple, Low Temp.	105℃ 10,000~12,000Hrs			●		Radial	160~500	6.8~470
		NBL	Long Life, High Ripple, Low Temp.	105℃ 15,000~20,000Hrs			●		Radial	160~500	3.3~470
		NBH	Long Life, High Ripple, Low Temp.	105℃ 20,000Hrs		●	●		Radial	160~500	33~470

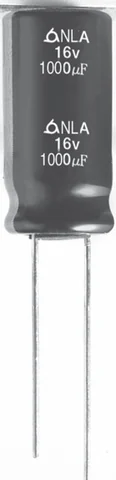

		NLA	Long Life	105℃ 6,000-10,000Hrs		●	●	●	Radial	6.3~50	100~18,000

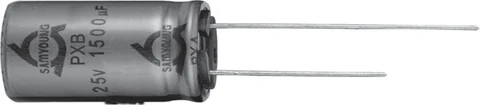

		PXB	Wide Temp., Low Imp., Long Life	125℃ 3,000-5,000Hrs		●	●	●	Radial	10~450	4.7~4,700

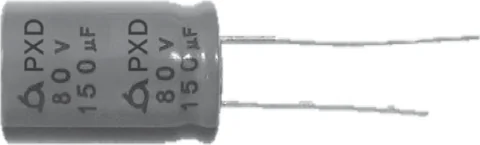

		PXD	Wide Temp.,Ultra Low Imp., Long Life	125℃ 4,000-5,000Hrs		●	●	●	Radial	10~80	100~4,700

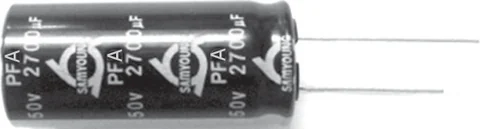

		PFA	Wide Temp., Low ESR	135℃ 2,000Hrs		●	●	●	Radial	10~100	180~14,000

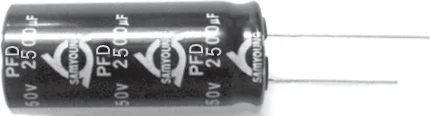

		PFD	Wide Temp.	125℃ 5,000Hrs / 135℃ 2,000Hrs			●		Radial	50~80	470~3,600
		PFB	Wide temp..Long life.High Voltage	130℃ 8,000~10,000Hrs			●	●	Radial	400~500	18~150

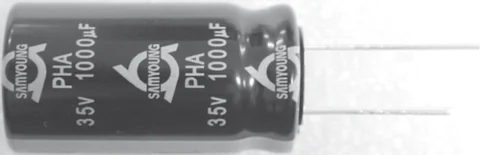

		PHA	Wide Temp.	150℃ 2,000Hrs			●	●	Radial	10~50	100~3.300

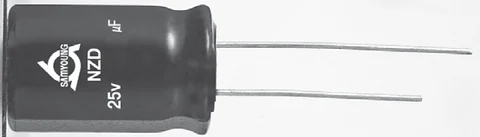

	Special Application	NZD	Air Bag	105℃ 5,000Hrs			●	●	Radial	25~35	1,100~5,000

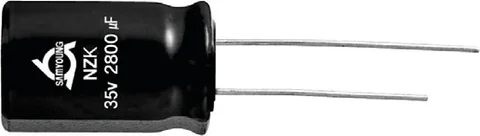

		NZK	Air Bag	105℃ 5,000Hrs					Radial	25~35	2,800~14.000
		NZH	High Ripple, 550V Surge	105℃ 2,000Hrs					Radial	450	18~150
		NZR	High Ripple, 550V Surge	105℃ 2,000Hrs					Radial	450	23~150
		NLF	Flame Retardant electrolyte type	105℃ 5,000Hrs					Radial	400~500
